VPAC LSC Lift Station Controllers

The LSC lift station controllers are backed by nearly a century of experience and thousands of installed lift stations offering municipalities solutions that improve their water and wastewater services. These cost effective controllers offer:

  • No programming required
  • Configurable for 1, 2 or 3 pump circuits – constant or variable speed
  • Intuitive and easy-to-read Graphical User Interface
  • User adjustable security, operational and alarm settings
  • Open-architecture with Modbus connectivity
  • Data Logging, Floats, Levels, Starts, Runs and Alarms
  • Available with icontrol® cloud-based SCADA and compatible with standard alarm dialers, traditional telemetry and SCADA systems

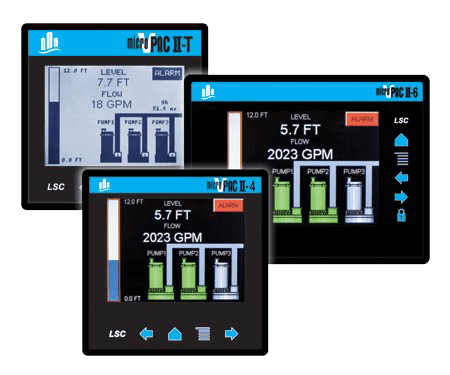

typical operator screens

icloud cloud-based SCADA

vpac lsc

Features

Pump Circuits

  • 1, 2 or 3 Pumps
  • Constant or Variable Speed

Level Sensing Input

  • 4-20mA from transducer with float-based backup (sold separately)

Security Settings

  • View
  • Operator
  • Supervisor

Standard User Adjustable Settings

  • High and Low Level Alarms
  • Pump Control (Hand-Off-Auto)
  • Pump Alternation
  • Auto or Fixed
  • Timed or Cyclical
  • Lead and Lag Pumps – Start and Stop Levels
  • Wet Well Level Scaling
  • VFD Speed (%)
  • Alarm Delay Timers

Standard Alarm Points (time and date stamped)

  • High Level Alarm – Transducer
  • Low Level Alarm – Transducer
  • Seal Failure
  • Overtemp and Overload
  • VFD Fault (if applicable)
  • Pump Fail (call no run)
  • Backup Active
  • High Level and Low Level Alarm from Float
  • Control Power Failures
  • Generator Running
  • Phase Failure
  • Station Intrusion
  • Current (if applicable)

Standard Status Indication and Data

  • Pump Status (per pump)
  • Off, Call, Running, Call Fail to Run
  • Hand-Off-Auto Status
  • Seal Failure
  • Over Temp
  • Run Times and Starts
  • Today
  • Yesterday
  • Current Month
  • Previous Month
  • Cumulative Total
  • Wet Well Level – Current and Trend
  • Data Logging to a removable data card (optional)
  • Pulse Flow Input

Optional Expanded Analog I/O

  • VFD Command Speed (%)
  • VFD Fault Monitoring
  • Current Monitoring (requires optional accessories)
  • Discharge Monitoring (requires optional accessories)

Remote Alarming

  • Compatible with most Alarm Dialers

Telemetry/SCADA (optional)

  • icontrol® web-based SCADA
  • Compatible with traditional telemetry and SCADA systems via MODBUS RTU

Specifications

  • Power Requirements: 12-24 VDC
  • Display Options:
    • 3.5″ Daylight Readable Transflex Touchscreen
    • 4″ LCD TFT Color, High Resolution Touchscreen (700 nit)
    • 6″ LCD TFT Color, High Resolution Touchscreen (450 nit)
  • Built-in I/O: 24 discrete inputs, 16 discrete outputs, 2 analog inputs
  • Optional I/O: 8 analog inputs, 4 analog inputs
  • Micro SD Data Storage Capability for Data Logging: 2GB to 64 GB
  • Communication Ports: 2 Seriel RS-232/RS-485, ethernet
  • Communication Protocols: MODBUS TRU, TCP/IP
  • Environmental Rating: NEMA and UL Type 1, 3R, 4, 4X, 12, 12K, 13
  • Dimensions: 3.75″ x 3.75″ x 2.5″ and 5.7″ x 7.3″ x 2.8″
  • Operating Temperature: 0-60°C
